Installation instructions for Volvo 300 parts

Post by **foggyjames** » 19 Nov 2004 01:23 pm

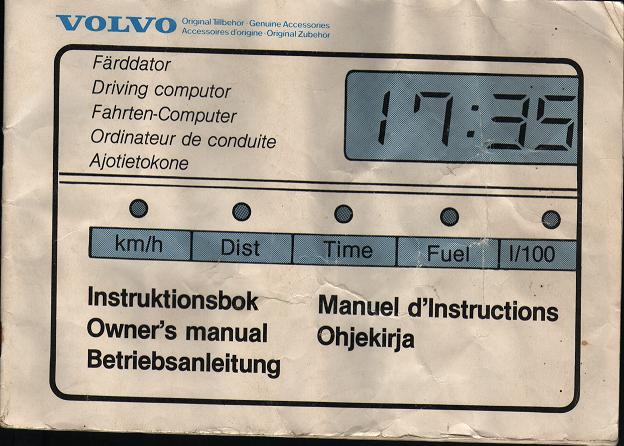

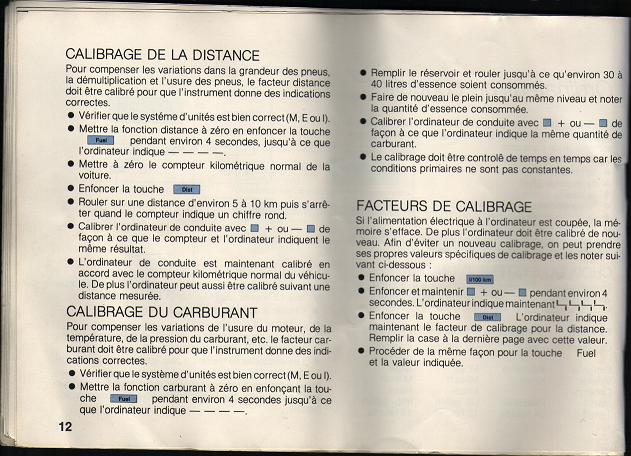

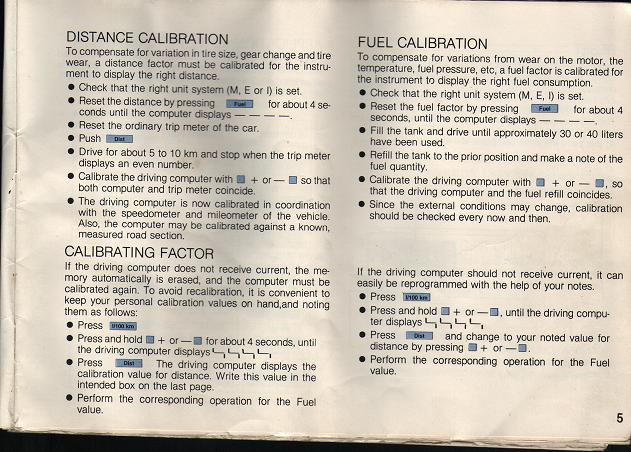

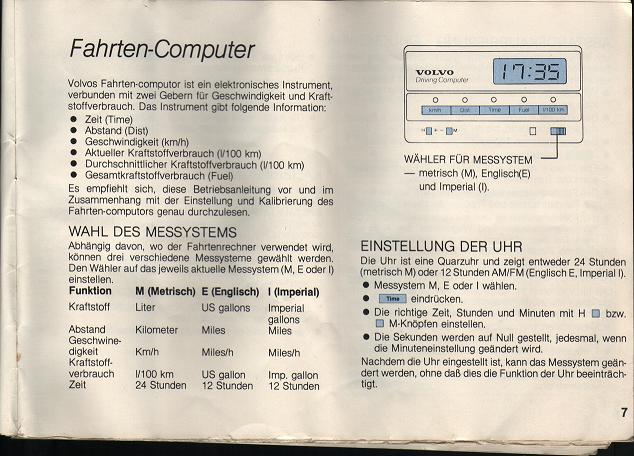

I have a new surprise in this thread for Aymat...its a rare one too!! Gimme a day or two and it'll get scanned...

As for the econometer one...its buried somewhere at home. I'll try to dig it out at Christmas, but I can't get it before then

It's definitely that curved pipe we pointed out to you, but if you're unsure, you'd be wise to wait. Alternatively, Hugh might have pics from Nessy...

cheers

James

Post by **5lab** » 19 Nov 2004 02:04 pm

nothing from under the bonnet unless its already been posted. soz. mine is split off the pipe that leads to the renix

Post by **foggyjames** » 19 Nov 2004 02:13 pm

There you go...easy!

cheers

James

Post by **Chris_C** » 22 Nov 2004 10:26 am

Good stuff!!! As long as I double make sure it's not a fuel pipe the worst that could happen in a trip to the ships, but I'll trust you and guy who seeemed to know what he's talking about (Rupert?)!

Post by **Chesh740R** » 06 Dec 2004 01:36 am

Post by **Azurael** » 08 Dec 2004 03:40 pm

Don't have any of these, but I did just dig out my original 343/345 1980 Owner's Manual and a little booklet that came with the car 'The secret behind the design of your Volvo' which has some intresting information about the development of the 343/435 through all the stages, development, prototyping, etc. If anybody's intrested in this, I'll dig out my scanner, or just take photos of it

(6mpixel cameras do have their uses, ya know...)

Post by **5lab** » 08 Dec 2004 04:23 pm

435 eh? thats a new one on me

you got your doors fixed yet?

Post by **Azurael** » 08 Dec 2004 05:58 pm

Prototype 440

OK, it was a typo

I actually got the passenger door open by kicking it (without damage too)... The driver's side is proving a little more resilliant, but I got rid of the cobwebs today and the rubbish from the boot

Post by **5lab** » 08 Dec 2004 06:08 pm

told you booting it would work. brute force all the way

as a thought - it might be to do with the door pins dropping - have you tried lifting the door (from the window frame) whilst kicking it?

Post by **jtbo** » 11 Jan 2005 09:51 pm

Anyone has lsd installation instructions? All languages accepted

Post by **Thomas D** » 09 Sep 2005 08:55 am

Aymat, I see you have the original Installing-Instructions for the ambient temperature-gauge. Mine is acting strange. I didn´t know how to connect, so I measured a bit and thought I figured it out.

Only strange thing, when I turn on the light, the temperature immediately increases by 10 degrees. Something must be wrong. Could you please send me the instructions ? Or anyone tell me where exactly it has to be connected, when wiring is not original. For example, I just connected one wire to ground somewhere. Now I´m not sure if it has to be grounded via the dash, in other words, connected to a voltagestabilizer or anything.

Post by **foggyjames** » 09 Sep 2005 12:45 pm

Almost certainly a bad ground....as you suspect. In theory you can ground it near the sender, but in practice, grounding nearer the dash is probably much better.

cheers

James

Post by **Thomas D** » 09 Sep 2005 02:31 pm

I grounded it on the ignition-lock. I can´t really imagine it´s a bad ground. Why should the electrical resistance be lower when I turn on the lights (which happens, acoorrding to the higher "temperature" on the gauge. It´s giving the correct temperatue with lights turned off).

Anyway, I´ll ground it somewhere else, just to test it.

Post by **foggyjames** » 09 Sep 2005 02:40 pm

It grounds back to the panel as standard. There may be resistance between the two ground points. You're really looking for a 'reference' ground, rather than a 'perfect' ground....if that makes sense?

cheers

James

Post by **Thomas D** » 09 Sep 2005 03:00 pm

Do you knw where it is grounded in original set-up ? I think that would be the best to try.
