Programmable intermittent wiper, the easy way

Post by nomead » 04 Sep 2009 03:46 pm

My 340 already had an intermittent wiper but the interval was fixed. I thought, autumn is coming, and rain. I started planning to make my own timer relay, but nothing ever came of that. Then I bumped into VW programmable wiper relays (VAG 357 955 531 / marked "99" on the relay) on eBay and bought one, since the price seemed reasonable, got mine for a bit over 20 euros including shipping. I looked at the 340 wiring diagrams and the connections seemed to be exactly what were needed. So one rainy lunch hour I plopped out the instrument panel, located the wiper relay (easy, it's the only one with six pins), removed the original relay from its socket, replaced it with this VW "99" relay, put the instrument panel back in, and now I have a programmable timer for the intermittent wiper.

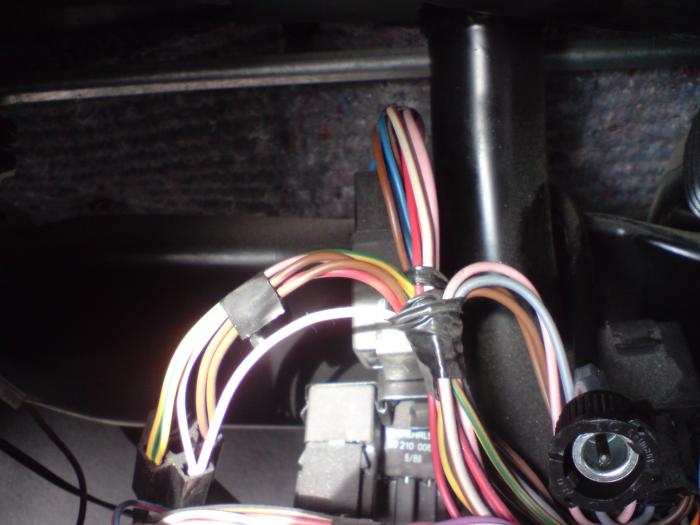

The location of the relay behind the instrument panel: it's the one on the top.
The VW relay installed in the socket, with type code visible.

After all this I found out that several others also had the same idea, for example http://volvospeed.com/vs_forum/index.ph ... vw-or-ipd/ :roll:
Volvo 340DL Variomatic -89
Volvo 360GLT -86

User avatar
trabitom99
*** V3M DONOR ***
Posts: 4390
Joined: 06 Jan 2007 02:38 pm
Location: Bonn, Germany

Re: Programmable intermittent wiper, the easy way

Post by trabitom99 » 04 Sep 2009 05:43 pm

Very interesting. The fixed speed isn't that useful really, as it's always either too fast or too slow!

Copied from your linked page:
USING YOUR NEW RELAY:
The stock intermittent speed is not adjustable. The new relay is completely adjustable, with a 2-22 second delay iirc. You program it as follows:
1) Push up wiper stalk to intermittent position
2) Return to "off" position
3) Wait desired interval then push back to intermittent. Whatever time delay you set it with, it will remember that speed until you rest it again.
Tom
343 GL Touring B14.1E CVT (155) 98000kms 1980 (sold)
343 L Junior B14.3E MT4 (155) 229000kms 1981 (scrapped)
343 DLS B19A MT4 (155) 167900kms 1982
360 GL Injection B200F MT5 (231) 348598kms 1988 (scrapped)
360 GLT B200F MT5 (302) 226000kms 1988

magnumpi
Posts: 1289
Joined: 05 Feb 2008 11:39 pm
Location: Surrey

Re: Programmable intermittent wiper, the easy way

Post by magnumpi » 04 Sep 2009 06:56 pm

Out of interest/ignorance, how does the timer work then, how do you adjust it, or does it have a different speed setting to the Volvo one, i'm confused :lol:
89 3dr 340DL in Battleship grey with Ultralights and Williams power
Whats the matter with the car i'm driving can't you tell that it's out of style?

User avatar
Speedy88
Posts: 4057
Joined: 04 May 2009 11:52 pm
Location: Bristol

Re: Programmable intermittent wiper, the easy way

Post by Speedy88 » 04 Sep 2009 07:05 pm

I think it comes with a little dial you can adjust the speed with :wink:
'88 340 Williams (Sold)
'85 360 GLS - Drift project (Sold)
'77 Colt Sigma
'96 940 Drift project

User avatar
nomead
*** V3M DONOR ***
Posts: 297
Joined: 16 Sep 2008 08:47 am
Location: Turku, Finland

Re: Programmable intermittent wiper, the easy way

Post by nomead » 04 Sep 2009 07:14 pm

Tom quoted the instructions. It needs no extra buttons or dials, you just use the wiper stalk to program it. Neat. Of course you need the car to have the fixed-interval intermittent wiper already installed, or the installation will get a bit trickier...
Volvo 340DL Variomatic -89
Volvo 360GLT -86

User avatar
trabitom99
*** V3M DONOR ***
Posts: 4390
Joined: 06 Jan 2007 02:38 pm
Location: Bonn, Germany

Re: Programmable intermittent wiper, the easy way

Post by trabitom99 » 04 Sep 2009 07:29 pm

It was an option on early 343s once:

That twiddly knob is the variable intermittant wipe ...

Tom
343 GL Touring B14.1E CVT (155) 98000kms 1980 (sold)
343 L Junior B14.3E MT4 (155) 229000kms 1981 (scrapped)
343 DLS B19A MT4 (155) 167900kms 1982
360 GL Injection B200F MT5 (231) 348598kms 1988 (scrapped)
360 GLT B200F MT5 (302) 226000kms 1988

User avatar
Chris_C
*** V3M DONOR ***
Posts: 9551
Joined: 18 Jun 2004 11:53 pm
Location: Southampton and Isle of Wight, UK
Contact:

Re: Programmable intermittent wiper, the easy way

Post by Chris_C » 04 Sep 2009 09:49 pm

I never knew these existed! Thanks Nomead, I'll be getting myself a couple from scrappies :D
'89(F) 340 GL F7R (ex B172k) - Fake -> SBKV 300 Runner Up 08, 12 - NASLR Time 15.7secs
'03 S60 D5 SE, '91 (J) MX5
Ex:
'91(H) 340 GL B14.4E - Kar; '88(F) 360 GLT B200E - Jet -> BKV 300 Runner Up 09; '89(G) 360 GLT B200E - Beast

User avatar
Chris_C
*** V3M DONOR ***
Posts: 9551
Joined: 18 Jun 2004 11:53 pm
Location: Southampton and Isle of Wight, UK
Contact:

Re: Programmable intermittent wiper, the easy way

Post by Chris_C » 07 Sep 2009 07:00 pm

Fitted mine this afternoon, and had a journey with it since in the fine misty UK rain. That has to be one of the best free mods I've done, relay was part of 2 good armfuls of scrappy bounty which my mate wanted :D
'89(F) 340 GL F7R (ex B172k) - Fake -> SBKV 300 Runner Up 08, 12 - NASLR Time 15.7secs
'03 S60 D5 SE, '91 (J) MX5
Ex:
'91(H) 340 GL B14.4E - Kar; '88(F) 360 GLT B200E - Jet -> BKV 300 Runner Up 09; '89(G) 360 GLT B200E - Beast

magnumpi
Posts: 1289
Joined: 05 Feb 2008 11:39 pm
Location: Surrey

Re: Programmable intermittent wiper, the easy way

Post by magnumpi » 07 Sep 2009 09:48 pm

So to clear this up you also need an aditional adjusting dial/knob to make this work yes? I can't fit it to my poverty spec DL?
89 3dr 340DL in Battleship grey with Ultralights and Williams power
Whats the matter with the car i'm driving can't you tell that it's out of style?

User avatar
volvodspec
Posts: 1921
Joined: 06 Dec 2008 09:35 pm
Location: Netherlands.
Contact:

Re: Programmable intermittent wiper, the easy way

Post by volvodspec » 07 Sep 2009 10:04 pm

magnumpi wrote:So to clear this up you also need an aditional adjusting dial/knob to make this work yes? I can't fit it to my poverty spec DL?
no; with the original handle you "program" the relay itself, the timer is built in to the relay. the only thing you need to do is swap out the relay, that's it.

User avatar
Chris_C
*** V3M DONOR ***
Posts: 9551
Joined: 18 Jun 2004 11:53 pm
Location: Southampton and Isle of Wight, UK
Contact:

Re: Programmable intermittent wiper, the easy way

Post by Chris_C » 07 Sep 2009 10:21 pm

Yup, it really is just a case of swapping the relay. Super simple pocketmoney mod.
'89(F) 340 GL F7R (ex B172k) - Fake -> SBKV 300 Runner Up 08, 12 - NASLR Time 15.7secs
'03 S60 D5 SE, '91 (J) MX5
Ex:
'91(H) 340 GL B14.4E - Kar; '88(F) 360 GLT B200E - Jet -> BKV 300 Runner Up 09; '89(G) 360 GLT B200E - Beast

magnumpi
Posts: 1289
Joined: 05 Feb 2008 11:39 pm
Location: Surrey

Re: Programmable intermittent wiper, the easy way

Post by magnumpi » 08 Sep 2009 02:30 pm

Cool tip then may just give this a go myself. :)
89 3dr 340DL in Battleship grey with Ultralights and Williams power
Whats the matter with the car i'm driving can't you tell that it's out of style?

User avatar
nomead
*** V3M DONOR ***
Posts: 297
Joined: 16 Sep 2008 08:47 am
Location: Turku, Finland

Re: Programmable intermittent wiper, the easy way

Post by nomead » 08 Sep 2009 06:21 pm

You need to have the fixed-interval intermittent wiper already fitted, otherwise it will be a lot more work. My -89 DL-spec has it, though, so yours might, too.
Volvo 340DL Variomatic -89
Volvo 360GLT -86

magnumpi
Posts: 1289
Joined: 05 Feb 2008 11:39 pm
Location: Surrey

Re: Programmable intermittent wiper, the easy way

Post by magnumpi » 08 Sep 2009 07:36 pm

Yeah mine has got the fixed intermitent wipe so should be good to go.
89 3dr 340DL in Battleship grey with Ultralights and Williams power
Whats the matter with the car i'm driving can't you tell that it's out of style?

kaos
Posts: 1298
Joined: 09 Jul 2007 10:34 pm
Location: Somerset

Re: Programmable intermittent wiper, the easy way

Post by kaos » 08 Sep 2009 08:13 pm

by fixed intermitant, im guessing you mean, that the wiper system has to have the intermitten function and not just an on off?

cause i have intermitten on mine, lol, but ive never heard the term fixed, unless by fixed it means fixed in the sense that it will do one sweep in so many seconds?
