Made some progress with this difficult shape.

Repaired the windscreen curve
Let in vertical and horizontal patch to the inner corner
Layer 1
Used carboard template to work out shape for layer 2, aswell as diagrams above to work out what I am connecting, then cut out in metal
Attached layer 2 patch to the curve with mole grips and beat it down to the required curve (not critical as hidden).

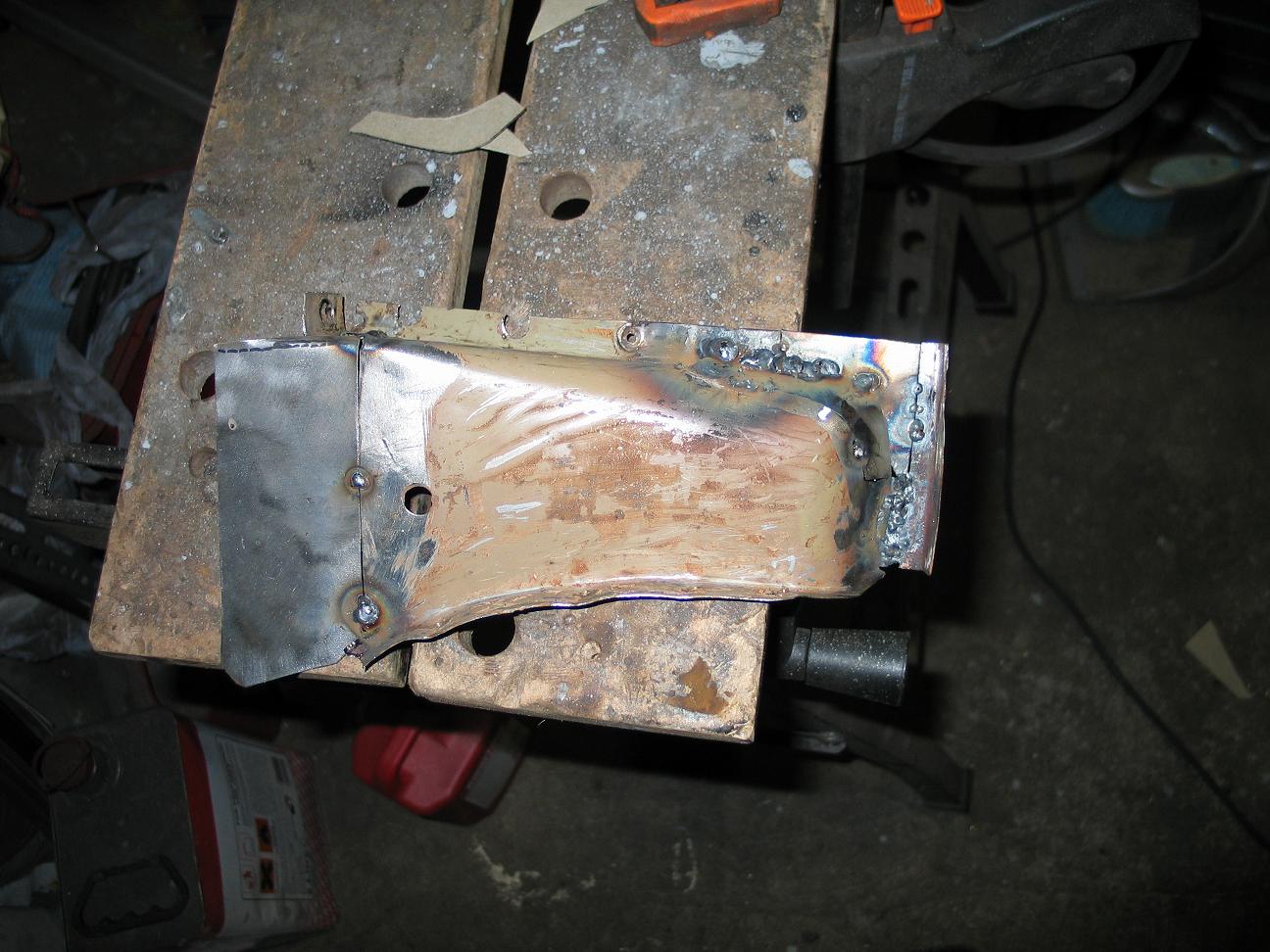

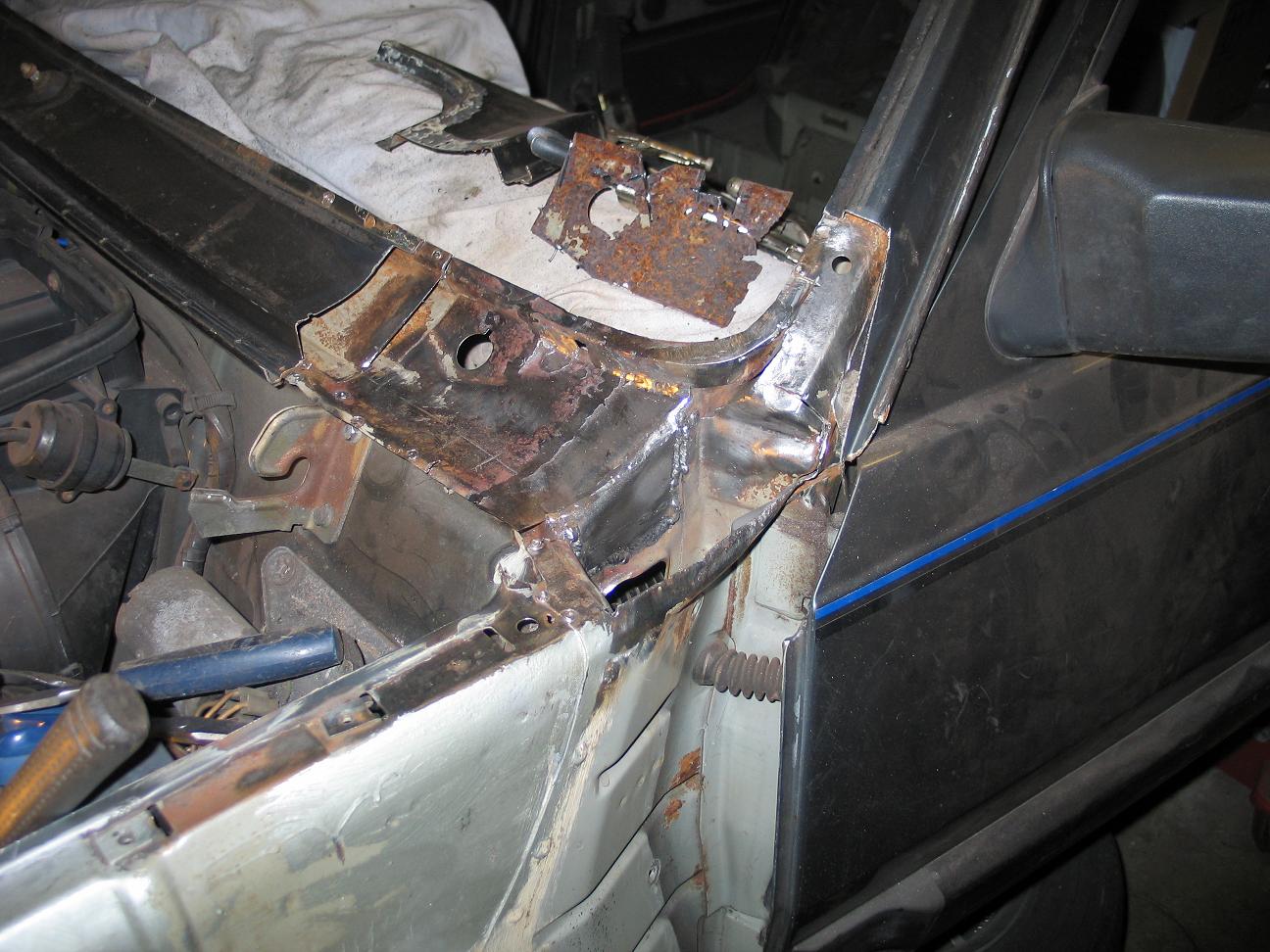

Layer 2 cut out and beaten

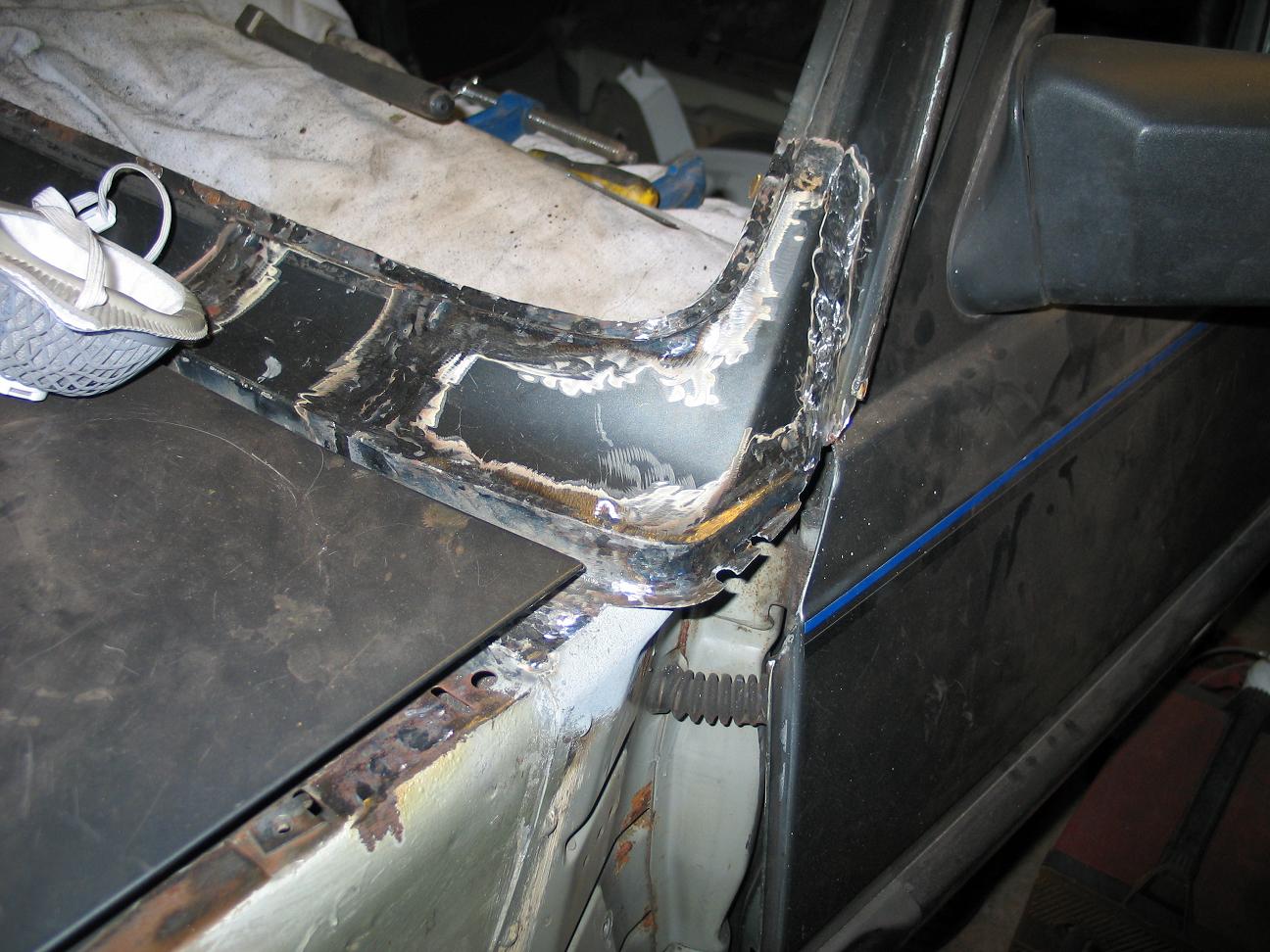

Still a bit of trmming and shaping, but hardest bit over.
1980 345 DL_______1987 360 GLE (project car restored to GLT spec and B230FT'd)
1984 360 GLT______1987 360 GLT
1983 360 GLS______1989 360 GLE
1985 340 GL_______1986 340 1.4
1985 360 GLS______1995 940 SE 2.3 Turbo Estate (daily)
1987 340 GL 1.7
Top
User avatar
trabitom99
*** V3M DONOR ***
Posts: 4398
Joined: 06 Jan 2007 02:38 pm
Location: Bonn, Germany

Re: Dreaded rust

Post by trabitom99 » 20 Oct 2011 07:57 am

Keep up the good work mate, I have so much respect for what you're doing!

Tom
343 GL Touring B14.1E CVT (155) 98000kms 1980 (sold)
343 L Junior B14.3E MT4 (155) 229000kms 1981 (scrapped)
343 DLS B19A MT4 (155) 167900kms 1982
360 GL Injection B200F MT5 (231) 348598kms 1988 (scrapped)
360 GLT B200F MT5 (302) 230000kms 1988
Top
User avatar
Chris_C
*** V3M DONOR ***
Posts: 9600
Joined: 18 Jun 2004 11:53 pm
Location: South Coast, UK

Re: Dreaded rust

Post by Chris_C » 20 Oct 2011 08:23 am

I'm really not looking forward to the day I have to do this job. Good metal smacking skills RideOn!
'89(G) 340 GLE B172k
'03 S60 D5 SE, '91 (J) MX5, 1954 Cyclemaster
Ex:
'89(F) 340 GL F7R (ex B172k) - Fake -> SBKV 300 Runner Up 08, 12; '91(H) 340 GL B14.4E - Kar; '88(F) 360 GLT B200E - Jet -> BKV 300 Runner Up 09; '89(G) 360 GLT B200E - Beast
Top
Ride_on
Posts: 2265
Joined: 26 May 2009 05:34 pm
Location: Belfast, N. Ireland

Re: Dreaded rust

Post by Ride_on » 21 Oct 2011 07:02 pm

Chris_C wrote:I'm really not looking forward to the day I have to do this job. Good metal smacking skills RideOn!
Honestly it was easy, I have no bashing skills. Generally I can only repair flat parts, anything with curves or bend I often just weld it in partially then beat it down. Only tools - anvil, shears, claw hammer and mole grips, and lots of grinding equipment. This curve was easy because its just structural internal, no cosmetic aspect. The hard part was knowing what to connect to what because there was so much loss. Anything more complicated I cut from a donor, or weld flat parts together.

If the outer skin is not worth recovering, you can buy repair sections.
1980 345 DL_______1987 360 GLE (project car restored to GLT spec and B230FT'd)
1984 360 GLT______1987 360 GLT
1983 360 GLS______1989 360 GLE
1985 340 GL_______1986 340 1.4
1985 360 GLS______1995 940 SE 2.3 Turbo Estate (daily)
1987 340 GL 1.7
Top
MCHUDD
*** V3M DONOR ***
Posts: 2537
Joined: 18 May 2006 03:43 pm
Location: BELFAST UNITED KINGDOM

Re: Dreaded rust

Post by MCHUDD » 24 Oct 2011 09:04 pm

Hi Mate.
Fantastic work. Way above my skill zone.
You deffinatly qualify for a replacement windscreen :lol: :lol: :lol:
Cheers Mark.
sm69 sm69 sm69 sm69 sm69 sm69 sm69 sm69 sm69
Top
Ride_on
Posts: 2265
Joined: 26 May 2009 05:34 pm
Location: Belfast, N. Ireland

Re: Dreaded rust

Post by Ride_on » 24 Sep 2012 07:19 pm

Some more photos to keep you interested
layer 2 welded
layer 2 finished and starting to add outer skin
State of FL radius arm mounting

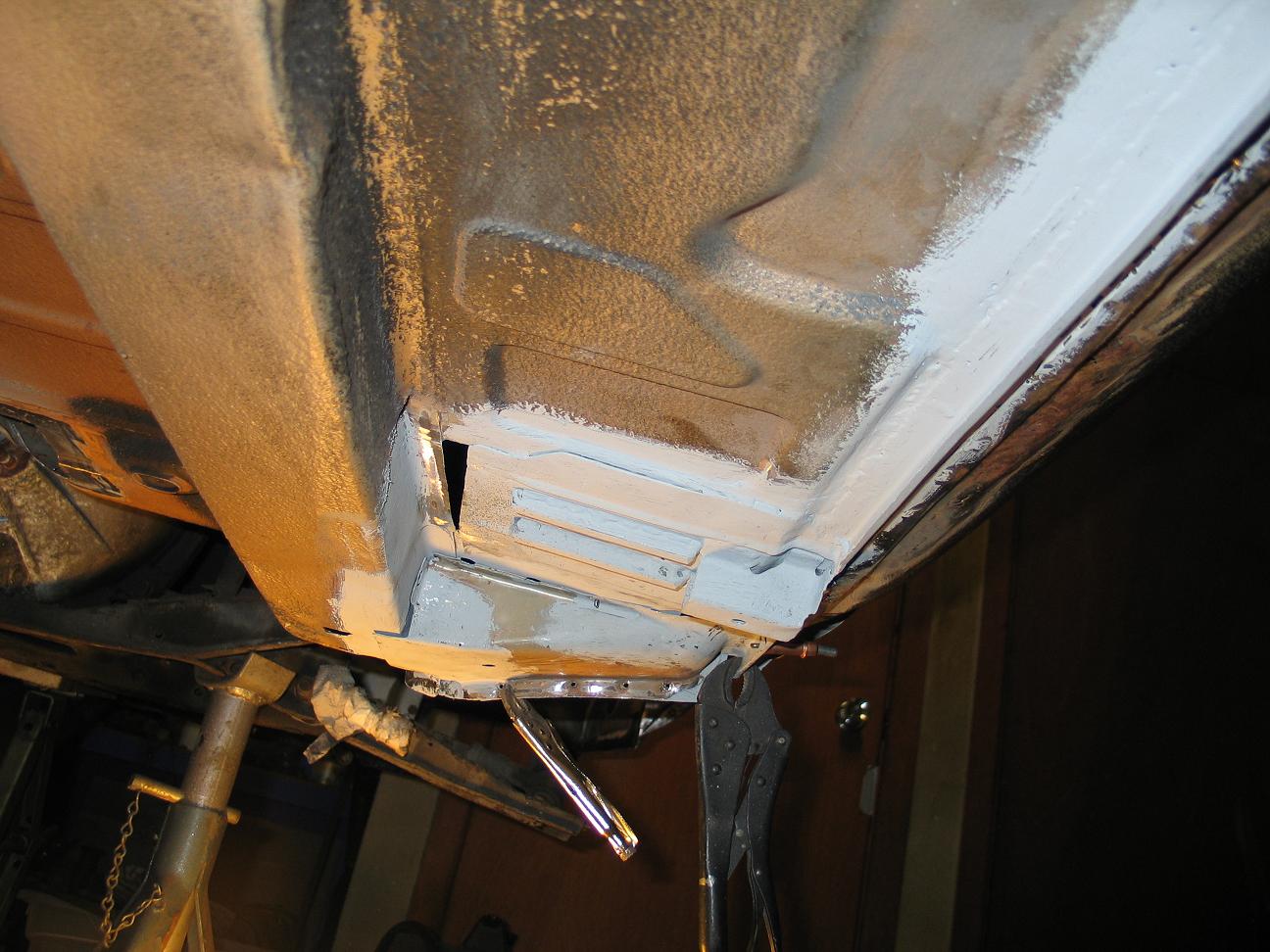

skinned and roughly finished

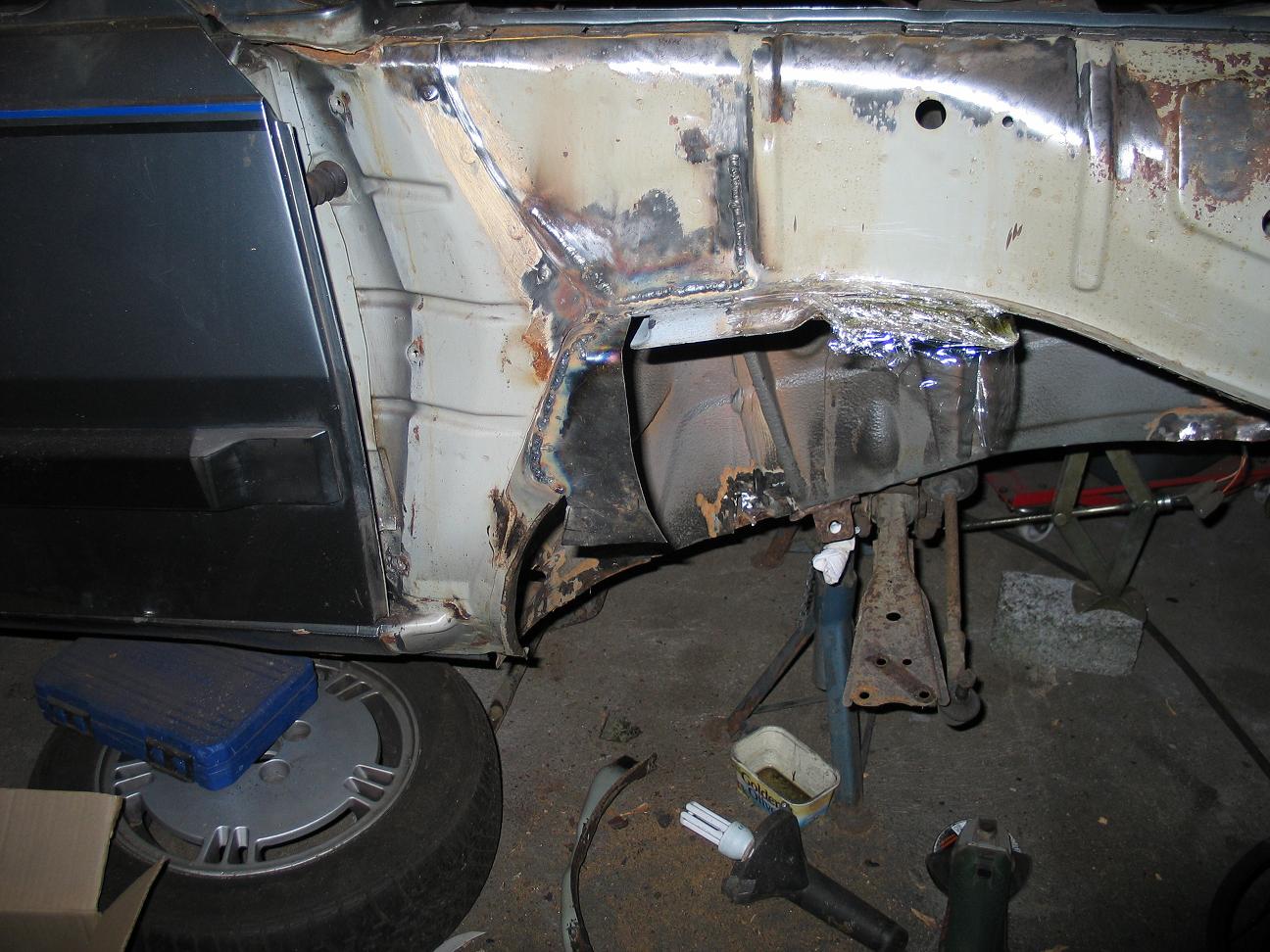

Inner guard repair

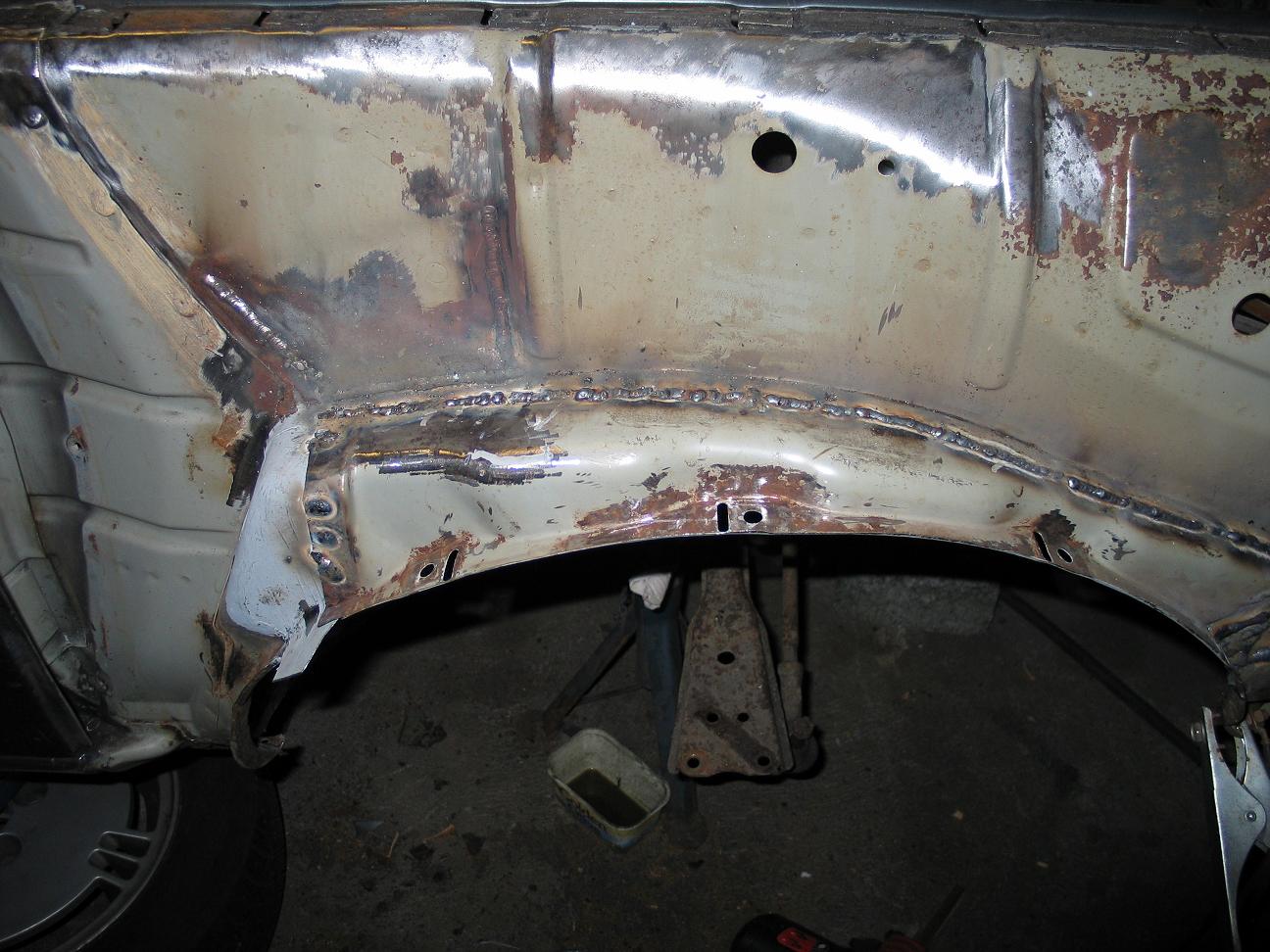

Inner guard welded (from Mchudd's car)
1980 345 DL_______1987 360 GLE (project car restored to GLT spec and B230FT'd)
1984 360 GLT______1987 360 GLT
1983 360 GLS______1989 360 GLE
1985 340 GL_______1986 340 1.4
1985 360 GLS______1995 940 SE 2.3 Turbo Estate (daily)
1987 340 GL 1.7
Top
Ride_on
Posts: 2265
Joined: 26 May 2009 05:34 pm
Location: Belfast, N. Ireland

Re: Dreaded rust

Post by Ride_on » 24 Sep 2012 07:27 pm

More older photo's and doing the sill today in anticipation of Macplaxtons arrival with new sill.

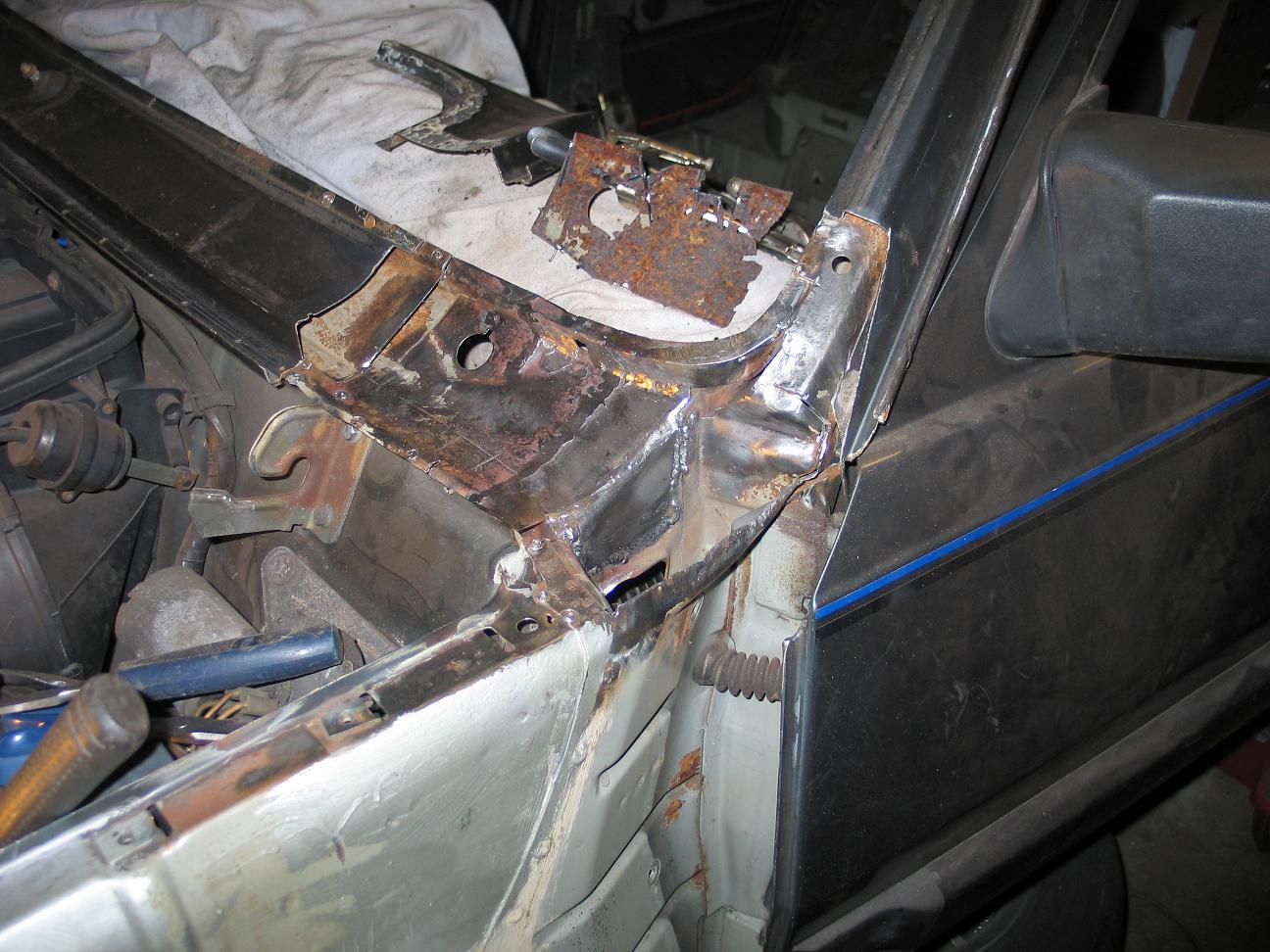

Front right footwell reinforcement
Footwell reinforcement ready to weld

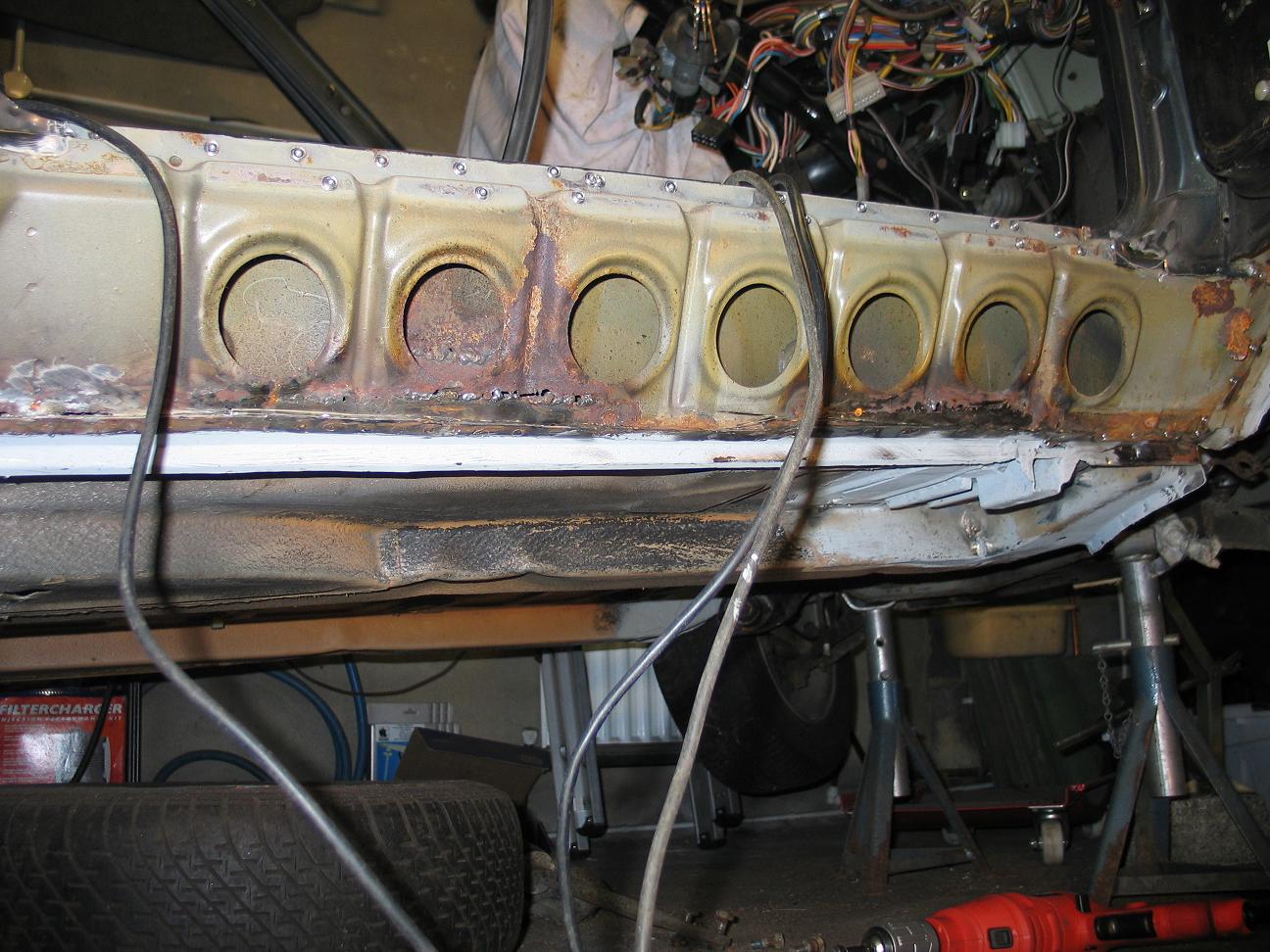

Removing RHS sill, drill pilots then cutter

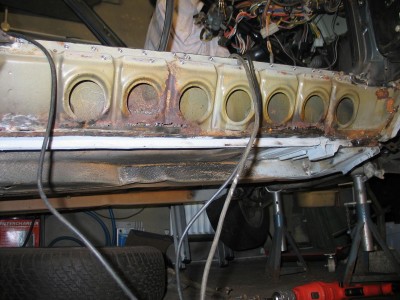

Top detached, after some hacking at the front door hinge area

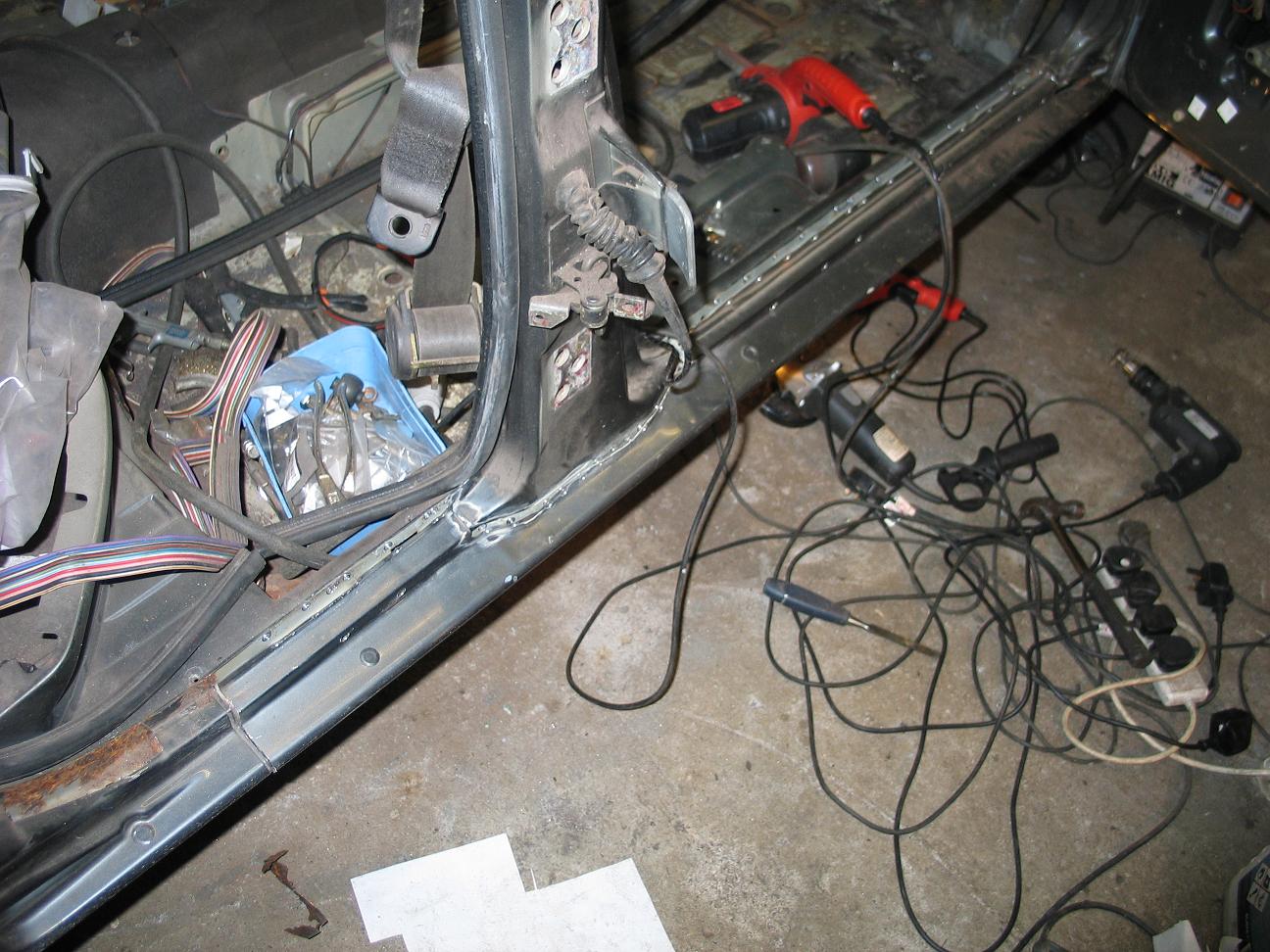

Sill cut off at the bottom revealing prevous repairs.
