Lock removal petrol cap

Post by Ride_on » 07 Mar 2016 07:49 pm

Does anyone know how to remove the lock from the petrol cap? I want to recode the lock.
1980 345 DL_______1987 360 GLE (project car restored to GLT spec and B230FT'd)
1984 360 GLT______1987 360 GLT
1983 360 GLS______1989 360 GLE
1985 340 GL_______1986 340 1.4
1985 360 GLS______1995 940 SE 2.3 Turbo Estate (daily)
1987 340 GL 1.7

User avatar
bogbasic
Posts: 1376
Joined: 21 Nov 2004 10:12 pm
Location: New Malden, Surrey.
Contact:

Re: Lock removal petrol cap

Post by bogbasic » 08 Mar 2016 12:55 am

MAC does - he did one for me a few weeks ago.
1988 340 1.4 GL, 218k, 5 door (Grey Bess). Gone to CBA.
1991 340 1.7 GL, 64k, 5 door, petrol blue (Deep Blue).
1988 360 2.0 GLE, 140k, 5 door, ocean blue metallic (Blue Bess).
1989 340 1.7 GL, 108k, 3 door (Red Ness).
More info here!

benji1985
Posts: 490
Joined: 30 Oct 2015 06:58 pm
Location: Helston

Re: Lock removal petrol cap

Post by benji1985 » 12 Mar 2016 06:42 pm

i would love to know how to do this, just mainly for the knowledge :D

Ben

User avatar
trabitom99
*** V3M DONOR ***
Posts: 4390
Joined: 06 Jan 2007 02:38 pm
Location: Bonn, Germany

Re: Lock removal petrol cap

Post by trabitom99 » 14 Mar 2016 12:24 pm

Ah yes, this would be some very interesting info for me too :-) Have a nice metallic green petrol cap for my GLT ... with the wrong lock on it.

Cheers

Tom
343 GL Touring B14.1E CVT (155) 98000kms 1980 (sold)
343 L Junior B14.3E MT4 (155) 229000kms 1981 (scrapped)
343 DLS B19A MT4 (155) 167900kms 1982
360 GL Injection B200F MT5 (231) 348598kms 1988 (scrapped)
360 GLT B200F MT5 (302) 226000kms 1988

Ride_on
Posts: 2232
Joined: 26 May 2009 05:34 pm
Location: Belfast, N. Ireland

Re: Lock removal petrol cap

Post by Ride_on » 14 Mar 2016 08:06 pm

Apparently Mac only knows how to do the early ones not single key lock system. I may have to perfom butchery.
1980 345 DL_______1987 360 GLE (project car restored to GLT spec and B230FT'd)
1984 360 GLT______1987 360 GLT
1983 360 GLS______1989 360 GLE
1985 340 GL_______1986 340 1.4
1985 360 GLS______1995 940 SE 2.3 Turbo Estate (daily)
1987 340 GL 1.7

Ride_on
Posts: 2232
Joined: 26 May 2009 05:34 pm
Location: Belfast, N. Ireland

Re: Lock removal petrol cap

Post by Ride_on » 15 Mar 2016 03:23 pm

Ah success! the back pops out (near the O-ring) and reveals all (it kind of explodes with springs and bits), will post some photos soon.
1980 345 DL_______1987 360 GLE (project car restored to GLT spec and B230FT'd)
1984 360 GLT______1987 360 GLT
1983 360 GLS______1989 360 GLE
1985 340 GL_______1986 340 1.4
1985 360 GLS______1995 940 SE 2.3 Turbo Estate (daily)
1987 340 GL 1.7

Ride_on
Posts: 2232
Joined: 26 May 2009 05:34 pm
Location: Belfast, N. Ireland

Re: Lock removal petrol cap

Post by Ride_on » 16 Mar 2016 02:20 am

First screwdriver gets pushed down the join between the parts that move. With a bit of a push down it should bend everything enough to pass through without major damage, although with my butchery attempts I did make some visible damage, but its not terribly important. Once the screw driver is through it should just pop out with a levering action, its all very soft material. A pinching action with pliers across the whole top section might also work.
Precision stab

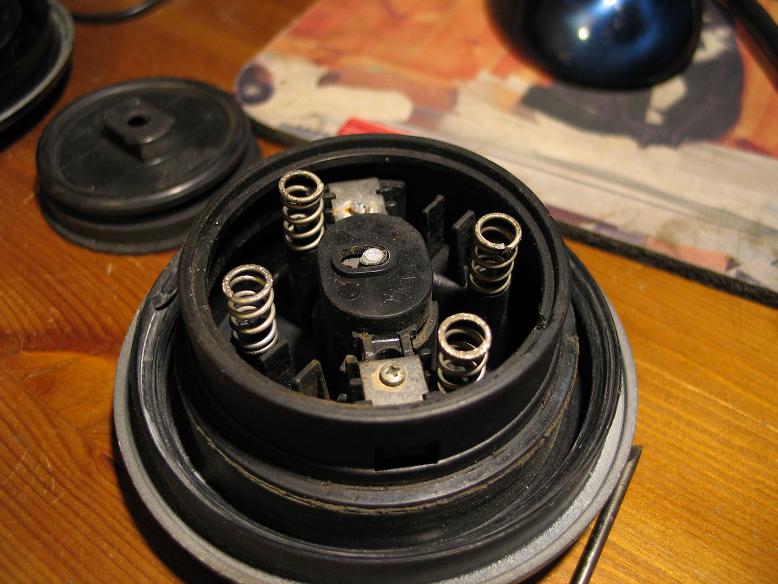

First layer, this normally goes flying
Springs also go flying, but not under big tension, cover with other hand if possible
3 Plastic tabs need popped out all at the same time, pressure from below then move each one.
Offending lock barrel, needed tapped out with a screwdriver handle.
Next is to soak and persuade the key bits to come out.
1980 345 DL_______1987 360 GLE (project car restored to GLT spec and B230FT'd)
1984 360 GLT______1987 360 GLT
1983 360 GLS______1989 360 GLE
1985 340 GL_______1986 340 1.4
1985 360 GLS______1995 940 SE 2.3 Turbo Estate (daily)
1987 340 GL 1.7

benji1985
Posts: 490
Joined: 30 Oct 2015 06:58 pm
Location: Helston

Re: Lock removal petrol cap

Post by benji1985 » 16 Mar 2016 10:15 am

That's great, thank you :)

Ben

User avatar
Chris_C
*** V3M DONOR ***
Posts: 9551
Joined: 18 Jun 2004 11:53 pm
Location: Southampton and Isle of Wight, UK
Contact:

Re: Lock removal petrol cap

Post by Chris_C » 17 Mar 2016 03:35 pm

That is a stunning piece of info, do you mind it moving to the members guides section under Tech?
'89(F) 340 GL F7R (ex B172k) - Fake -> SBKV 300 Runner Up 08, 12 - NASLR Time 15.7secs
'03 S60 D5 SE, '91 (J) MX5
Ex:
'91(H) 340 GL B14.4E - Kar; '88(F) 360 GLT B200E - Jet -> BKV 300 Runner Up 09; '89(G) 360 GLT B200E - Beast

Ride_on
Posts: 2232
Joined: 26 May 2009 05:34 pm
Location: Belfast, N. Ireland

Re: Lock removal petrol cap

Post by Ride_on » 23 Mar 2016 02:38 am

Not atall, Lock barrel is in a poor state and was very hard to get the key bits out stuck in with corrosion, so I did some damage to the barrel with my 'tool' I used to hammer them out and its fairly unique in the car, not like you can use one from somewhere else. I had 2 caps and both were similar, much worse than the tailgate one that was siezed and I rebuilt successfully. The cap lock does not seem to be sealed unlike the others, so water and dirt get in. Maybe they thought it would be ok sitting in plastic.

I'm thinking the corrosion might come from the steel in the springs. The springs are all ruined as they where stuck in but I should have enough other locks to get enough springs, also no sign of any on internet but not had a good hard look yet.
Having said that the key bits move in both locks after a nice gentle Phosphoric acid dip, and poke at the barrel with a screw driver. Key bit also flattened with wet+dry on flat surface, this took any tool damage off.

Anyway will put up more pictures once I get the car back to get the key. I have the lock key bit code but not quite sure which way around it goes.
