1986 340 1.6DL Fusebox - What fuse is for what?
1986 340 1.6DL Fusebox - What fuse is for what?
Does anybody know what fuse is for what in the fusebox for a '86 1.6DL? Mine is the old type which doesn't use spade fuses, and unfortunately the casing isn't marked, and the Haynes manual is completely useless as regards this fusebox.
1986 Volvo 340 1.6DL - 4 door model
-
- Posts: 641
- Joined: 09 Aug 2005 02:24 pm
- Location: Antwerp, Belgium
Re: 1986 340 1.6DL Fusebox - What fuse is for what?
Have you tried looking in the cars owners manual?
It normally has a page linking the numbers on the fuse box to their purpose.
That is offcourse if you have an owners manual of your car.
It normally has a page linking the numbers on the fuse box to their purpose.
That is offcourse if you have an owners manual of your car.
Life is a journey, so sit back and enjoy the ride!
Born Built Beauties: Parts keeping our cars on the road!
http://www.Born-Built-Beauties.eu
Born Built Beauties: Parts keeping our cars on the road!
http://www.Born-Built-Beauties.eu
Re: 1986 340 1.6DL Fusebox - What fuse is for what?

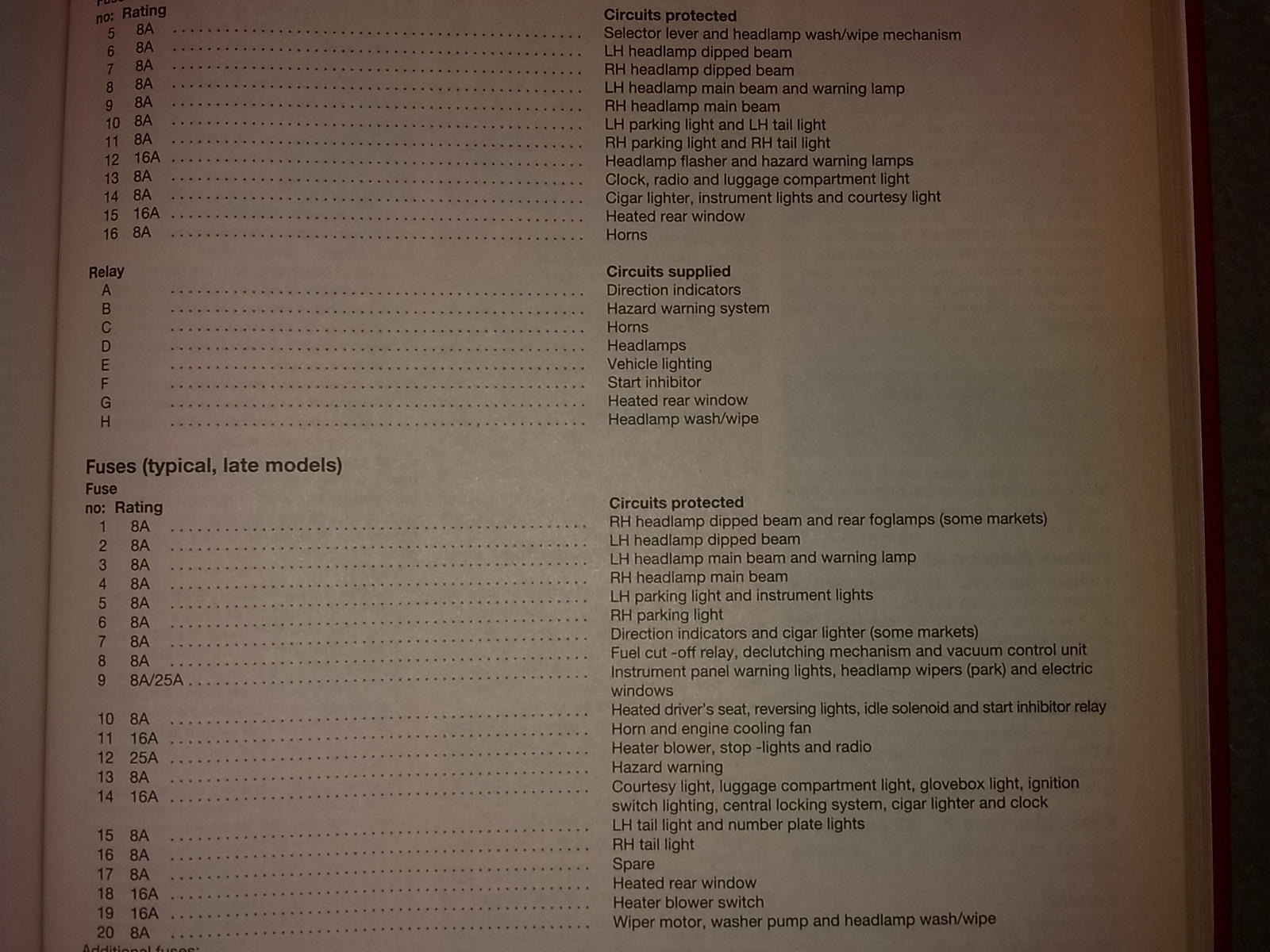

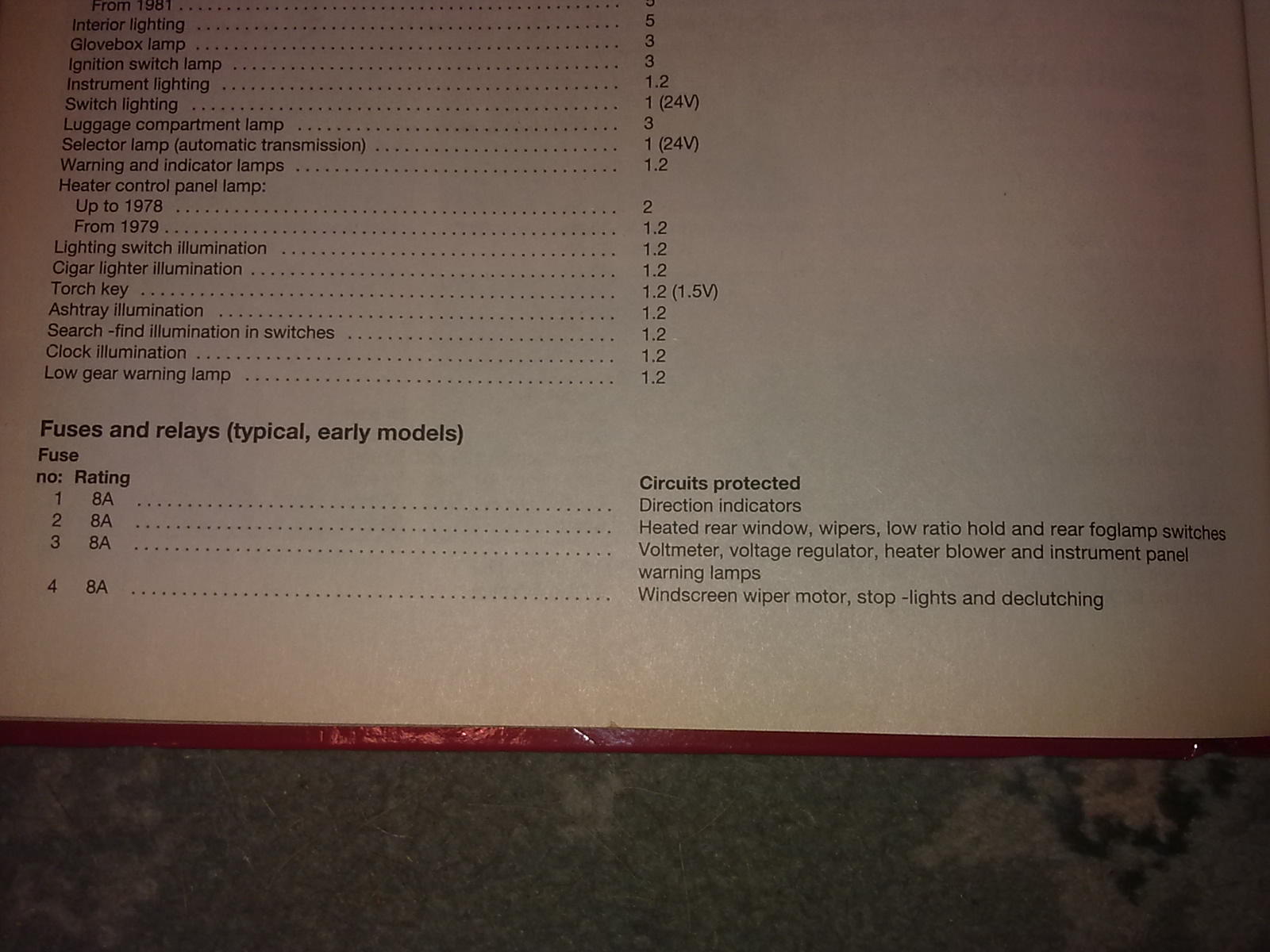

Unfortunately I don't have the original owners manual, I have a Haynes manual, but unfortunately it's completely wrong for my fusebox.
1986 Volvo 340 1.6DL - 4 door model
Re: 1986 340 1.6DL Fusebox - What fuse is for what?
please take a pic of your fuse box, or look on this site at the info in the resources there is a electrical sectionWanderer wrote:Unfortunately I don't have the original owners manual, I have a Haynes manual, but unfortunately it's completely wrong for my fusebox.
Ben
Re: 1986 340 1.6DL Fusebox - What fuse is for what?
Here's the fusebox, I plan to replace it with one with spade type fuses down the line, but knowing what the fuses are for would be a good start.
1986 Volvo 340 1.6DL - 4 door model
Re: 1986 340 1.6DL Fusebox - What fuse is for what?
there is not a 300 series fusebox that uses spade type not to my knowledge anyway looks like that fuse box is in need of repairWanderer wrote:
Here's the fusebox, I plan to replace it with one with spade type fuses down the line, but knowing what the fuses are for would be a good start.
Re: 1986 340 1.6DL Fusebox - What fuse is for what?
as suggested earlier look at the resources here:
http://www.volvo300mania.com/technical/ ... agrams.pdf page 5
http://www.volvo300mania.com/technical/ ... agrams.pdf page 5
Re: 1986 340 1.6DL Fusebox - What fuse is for what?
All of the electrics on this car are just plain nasty.
I'm thinking a spade type fuse box out of just about anything with 20+ fuses will do the job, keeping the car 100% original isn't in my list of worries, the previous owners have already made that one simpler by bodging everything. Thanks for the link, that'll make things alot easier.
I'm thinking a spade type fuse box out of just about anything with 20+ fuses will do the job, keeping the car 100% original isn't in my list of worries, the previous owners have already made that one simpler by bodging everything. Thanks for the link, that'll make things alot easier.
1986 Volvo 340 1.6DL - 4 door model
Re: 1986 340 1.6DL Fusebox - What fuse is for what?
1988 340 1.4 GL, 218k, 5 door (Grey Bess). Gone to CBA.
1991 340 1.7 GL, 64k, 5 door, petrol blue (Deep Blue).
1988 360 2.0 GLE, 140k, 5 door, ocean blue metallic (Blue Bess).
1989 340 1.7 GL, 108k, 3 door (Red Ness).
More info here!
1991 340 1.7 GL, 64k, 5 door, petrol blue (Deep Blue).
1988 360 2.0 GLE, 140k, 5 door, ocean blue metallic (Blue Bess).
1989 340 1.7 GL, 108k, 3 door (Red Ness).
More info here!
Re: 1986 340 1.6DL Fusebox - What fuse is for what?
people on here and the facebook group will have spare fuse boxes, the wiring in and out of the fuse box is more complicated than you may think, it is possible to open them up and clean them up.
this might well be the best and easiest route to go is to just replace the box?
Ben
this might well be the best and easiest route to go is to just replace the box?
Ben
Re: 1986 340 1.6DL Fusebox - What fuse is for what?
Replacing the box with an original one is a possibility - although a box with spade type fuses would be nice. I'll have to actually remove it and see what a complicated job it would be to wire a box from another car in.
My Volvo is home to wonderful electric bodgery such as glow plugs heated by a button mounted on the dash. To be honest a trashed donor car with a decent wiring loom and electrical parts would be incredibly useful.
My Volvo is home to wonderful electric bodgery such as glow plugs heated by a button mounted on the dash. To be honest a trashed donor car with a decent wiring loom and electrical parts would be incredibly useful.
