Re: The Battleship,Williams, highs and lows!

Post by volvodspec » 22 May 2010 04:16 pm

it does look like just the leafspring

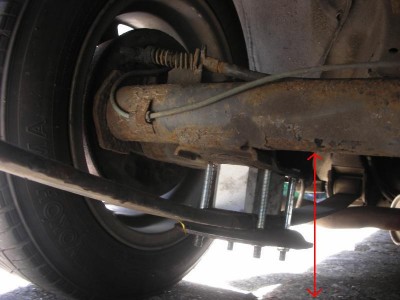

just to check.. get the rear axle on straight tarmac or something similar, then measure this L + R
if it measures the same, its the leafspring and then i would replace them by pair. haven't seen this before on a 300 though :o

magnumpi
Posts: 1289
Joined: 05 Feb 2008 11:39 pm
Location: Surrey

Re: The Battleship,Williams, highs and lows!

Post by magnumpi » 22 May 2010 04:21 pm

No, no double springs for me, thought i was missing a leaf.

Your right the drivers side i.e the side sitting lower doesn't seem to have much curve and i think thats whats causing the problem.
Although the rear hanger looks wonky taking a tape measure fron the axle to the bottom bolt on either side gives a different measurement of about 2mm so i don't think it's that, i reckon the spring has had it.

Oh well more expense :roll:
89 3dr 340DL in Battleship grey with Ultralights and Williams power
Whats the matter with the car i'm driving can't you tell that it's out of style?

magnumpi
Posts: 1289
Joined: 05 Feb 2008 11:39 pm
Location: Surrey

Re: The Battleship,Williams, highs and lows!

Post by magnumpi » 22 May 2010 04:24 pm

volvodspec wrote:it does look like just the leafspring

just to check.. get the rear axle on straight tarmac or something similar, then measure this L + R
if it measures the same, its the leafspring and then i would replace them by pair. haven't seen this before on a 300 though :o

Do you mean if it measures the same, or was that meant to be different?

Sounds about my luck then :lol:
89 3dr 340DL in Battleship grey with Ultralights and Williams power
Whats the matter with the car i'm driving can't you tell that it's out of style?

User avatar
volvodspec
Posts: 1921
Joined: 06 Dec 2008 09:35 pm
Location: Netherlands.
Contact:

Re: The Battleship,Williams, highs and lows!

Post by volvodspec » 22 May 2010 04:32 pm

that measures if the axle is still straight; that could potentially mess up how the leafspring sits too, oh yeah. make sure that L+R is exactly the same tire pressure :D

if the measurements from axle to the gorund L + R are the same the axle is straight and you need a new pair of leafsprings
if those measurements are off it's the axle

magnumpi
Posts: 1289
Joined: 05 Feb 2008 11:39 pm
Location: Surrey

Re: The Battleship,Williams, highs and lows!

Post by magnumpi » 22 May 2010 05:01 pm

Ah i see now. Well i've just moved it to a flatter part of the drive and guess what, it's now sitting somewhere more like level.

I did just pump the tyres up aswell while waiting for the reply :D

Edit: The measurement is the same on the axle from L-R.
89 3dr 340DL in Battleship grey with Ultralights and Williams power
Whats the matter with the car i'm driving can't you tell that it's out of style?

User avatar
foggyjames
*** V3M DONOR ***
Posts: 9361
Joined: 29 Jan 2004 04:20 am
Location: Nottingham, UK

Re: The Battleship,Williams, highs and lows!

Post by foggyjames » 22 May 2010 07:37 pm

If you need a set of springs, I should have a very good pair available in a few weeks time.

cheers

James
VOC 300-series Register Keeper
'89 740 Turbo Intercooler
'88 360 Turbo Intercooler
'85 360 GLT
'81 343 GLS R-Sport
'79 343 DL
'70 164
...and some modern FWD nonsense to get me to work...

User avatar
SteveP
*** V3M DONOR ***
Posts: 7943
Joined: 21 Sep 2004 12:45 pm
Location: Coventry, UK

Re: The Battleship,Williams, highs and lows!

Post by SteveP » 22 May 2010 10:25 pm

volvodspec wrote:it does look like just the leafspring.... haven't seen this before on a 300 though :o
Me neither... quite surprised!
1989 - Volvo 360 GLT
1985 - Volvo 360 GLS
2008 - Volvo S60 SE Lux

User avatar
jtbo
Posts: 5805
Joined: 23 Jul 2004 03:50 am
Location: Finland, middle of nowhere
Contact:

Re: The Battleship,Williams, highs and lows!

Post by jtbo » 22 May 2010 11:00 pm

Man, it is those grapes, extra weight on that side when weather is damp as them grapes might soak water in and gain quite bit of weight :lol:
Volvo 360GL -88 -under restoration-
Volvo 343DL vario -81 -running- Image
Volvo 240 Diesel -83 -undecided-
Citroen ZX Dturbo -97 -daily- ImageImage

volvosneverdie
*** V3M DONOR ***
Posts: 9143
Joined: 11 Nov 2008 04:22 pm
Location: Newcastle Upon Toon

Re: The Battleship,Williams, highs and lows!

Post by volvosneverdie » 22 May 2010 11:05 pm

this one is going down in the book.


a leafspring fail?
that can go on the same page as that b14 HG failure.

Although im not sure that ever happened.

User avatar
foggyjames
*** V3M DONOR ***
Posts: 9361
Joined: 29 Jan 2004 04:20 am
Location: Nottingham, UK

Re: The Battleship,Williams, highs and lows!

Post by foggyjames » 23 May 2010 01:50 am

Ok, time for a daft question...when you did the blocks, I take it you didn't play with the shackle bolts at all? I'm just wondering if an extreme amount of preload on the bushes could be holding the spring in tension. It's a trick the yanks like to play on their old leaf-sprung cars to stiffen the rear up a bit. It sounds highly unlikely to me, but I thought I best ask!

cheers

James
VOC 300-series Register Keeper
'89 740 Turbo Intercooler
'88 360 Turbo Intercooler
'85 360 GLT
'81 343 GLS R-Sport
'79 343 DL
'70 164
...and some modern FWD nonsense to get me to work...

magnumpi
Posts: 1289
Joined: 05 Feb 2008 11:39 pm
Location: Surrey

Re: The Battleship,Williams, highs and lows!

Post by magnumpi » 23 May 2010 03:26 pm

jtbo wrote:Man, it is those grapes, extra weight on that side when weather is damp as them grapes might soak water in and gain quite bit of weight :lol:

When i read that i genuinely laughed out loud :lol:


Right just to clear things up, no i didn't mess with the shackle (hanger) bolts at all, i just removed the driveshafts then took the bolts out of the spring plates, fitted the blocks and bolted it back up again.

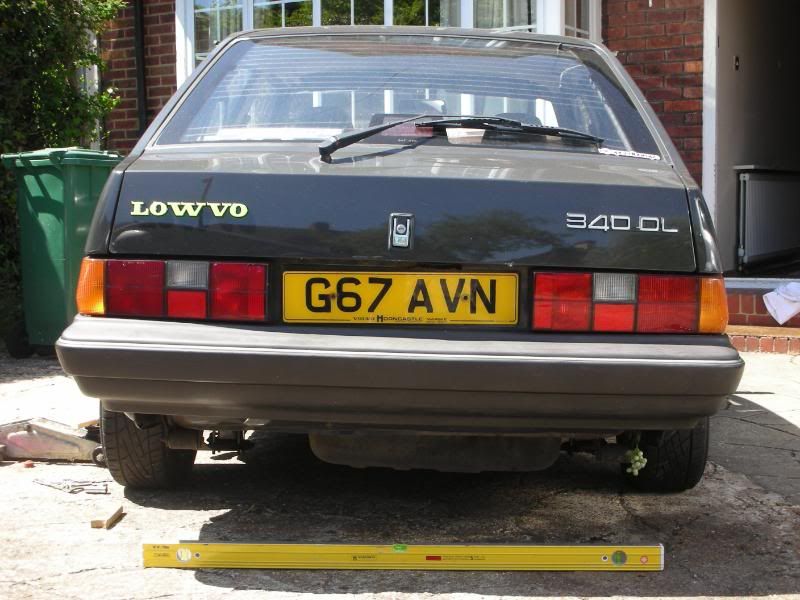

Sometimes i do think i'm just a little bit retarded, well from this pic, clearly that lean is not right am i correct?:




Bearing in mind where it was on the drive, the floor was only out by 1/2" or so, but the suspension difference from side to side was almost 2,1/2". I had already jacked up both sides and lowered it back down, plus jumped it up and down on the springs to maybe try and settle them a bit, but it still stayed wonky. So i moved it to a flatter area and it seemed to square itself up. The shocks that would not return to extended position over night, then decided to work, so i reinstalled them and took it out for a drive.

Everything seems fine, not a dodgy angle in sight.

So after asking for all the help, removing shocks, replacing them, putting it all back together it seems as if there was never a problem!

This is kind of how i feel :lol:


89 3dr 340DL in Battleship grey with Ultralights and Williams power
Whats the matter with the car i'm driving can't you tell that it's out of style?

User avatar
volvodspec
Posts: 1921
Joined: 06 Dec 2008 09:35 pm
Location: Netherlands.
Contact:

Re: The Battleship,Williams, highs and lows!

Post by volvodspec » 23 May 2010 03:38 pm

when your front right wheel is in a ditch or your left front wheel is on a bump when you park it there, that could explain everything :D

User avatar
Speedy88
Posts: 4057
Joined: 04 May 2009 11:52 pm
Location: Bristol

Re: The Battleship,Williams, highs and lows!

Post by Speedy88 » 23 May 2010 11:24 pm

hahaha! epic fail. Glad its sorted man :lol:
'88 340 Williams (Sold)
'85 360 GLS - Drift project (Sold)
'77 Colt Sigma
'96 940 Drift project

User avatar
JPB
Posts: 85
Joined: 28 Mar 2010 01:21 pm

Re: The Battleship,Williams, highs and lows!

Post by JPB » 24 May 2010 12:48 am

magnumpi wrote:not a dodgy angle in sight.
....Number plate looks like it was attached by an horizontal datum though.... :wink:
John.

Previous keeper of VND's 1989 340 GL 5 door vario.
1972 Triumph Dolomite Automatic.

User avatar
volvodspec
Posts: 1921
Joined: 06 Dec 2008 09:35 pm
Location: Netherlands.
Contact:

Re: The Battleship,Williams, highs and lows!

Post by volvodspec » 24 May 2010 08:07 am

JPB wrote:
magnumpi wrote:not a dodgy angle in sight.
....Number plate looks like it was attached by an horizontal datum though.... :wink:
:lol: :lol: :lol: :lol: :lol: :lol: :lol:
