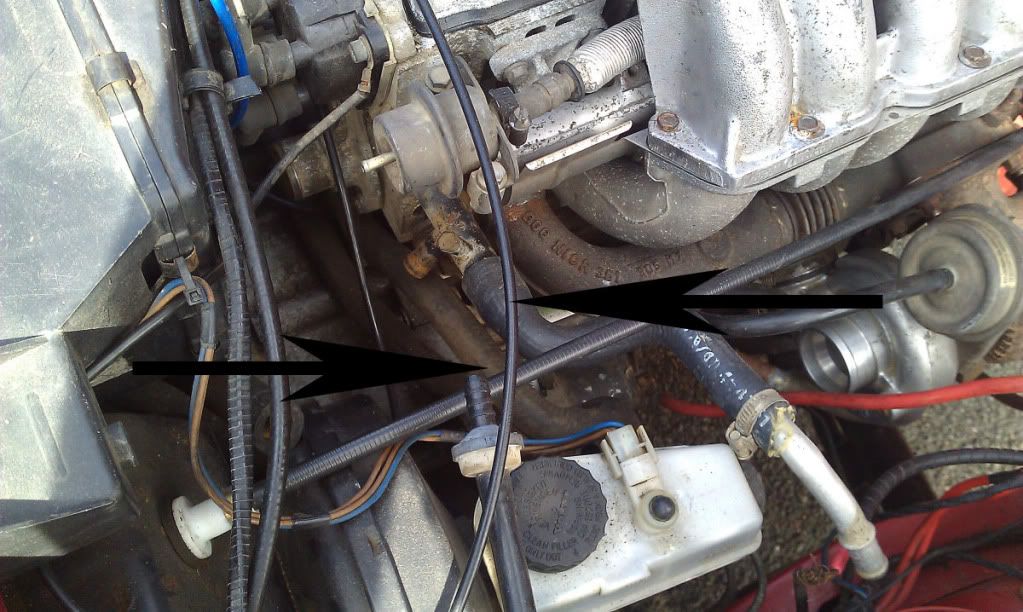

Also, these 2 pipes I presume are the in/out for the heater?

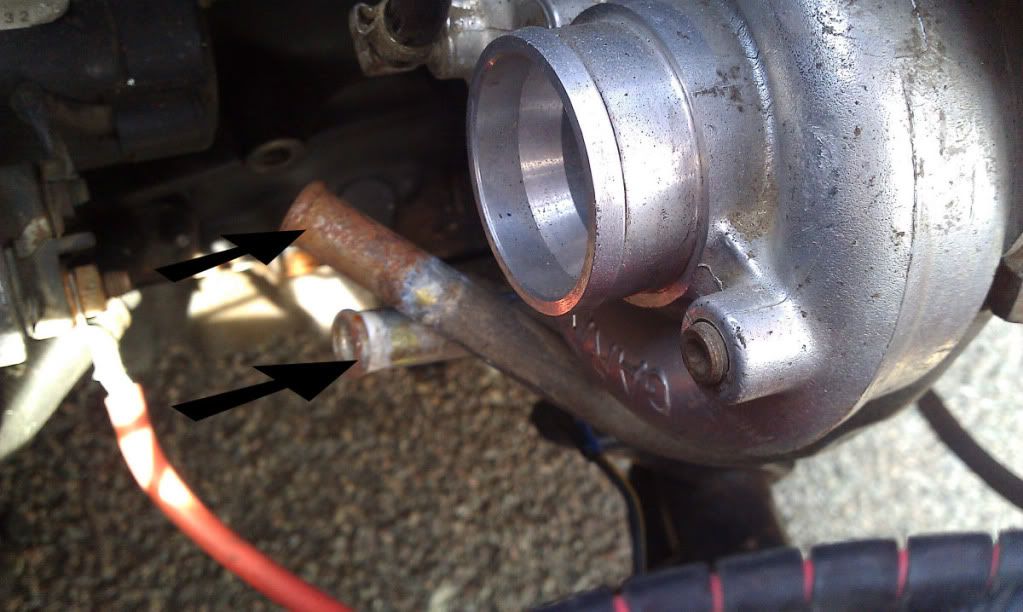

And do these 2 mean the turbo is water cooled?
Ideally, I need some more photos of an engine like this installed so I can work out wiring and plumbing ideas. Anyone ?

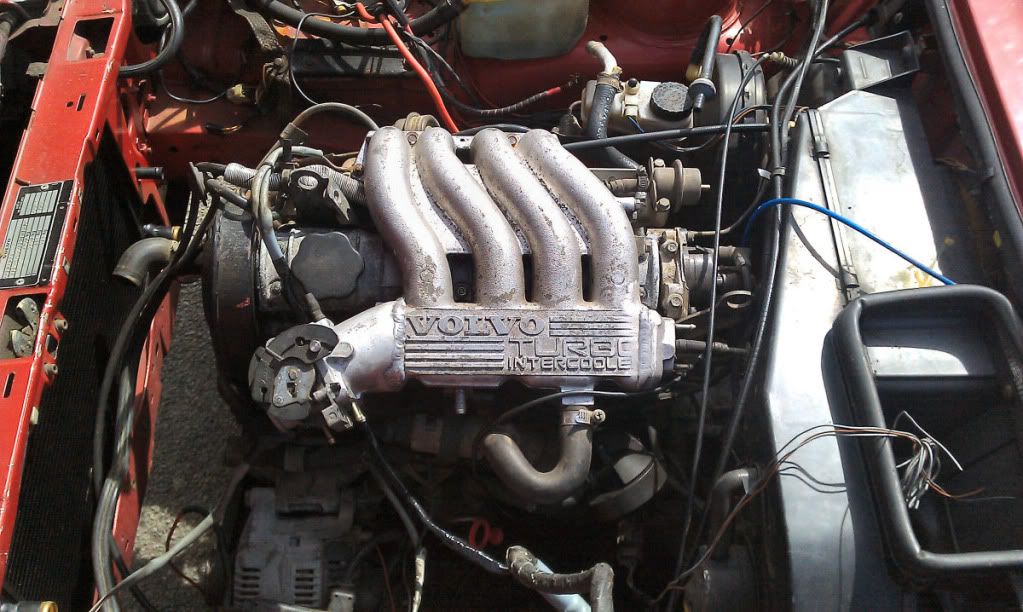

What engine is this?
What engine is this?
At first I thought this was obvious - it's a 1.7 480 turbo one, right? In that case why does the throttle body point the other way? Ok, thats really useful to me cos i need it to point that way, but why?
Also, these 2 pipes I presume are the in/out for the heater?
And do these 2 mean the turbo is water cooled?
Ideally, I need some more photos of an engine like this installed so I can work out wiring and plumbing ideas. Anyone ?
Also, these 2 pipes I presume are the in/out for the heater?
And do these 2 mean the turbo is water cooled?
Ideally, I need some more photos of an engine like this installed so I can work out wiring and plumbing ideas. Anyone ?
Trundle returns... Watch this space
Re: What engine is this?
Yes, it looks like a B18FT. Check the engine plate.
The throttle points the other way soley so the TB doesn't sit in the heater box, the water pathways are *almost* the same as the B172K, apart from the fact the turbo is also water cooled (yes, oil and water cooled). Also, block off the 2 outlets that currently arn't being used from the heater end of the manifold (or, better still, find out what they should be and plumb them up, I noted the FPR isn't plumbed up so that's likely one). Green books for both the B172 and B18FT exist on the internet, the first is on this site, can't remember where the B18FT was though, likely 480 club europe.
The throttle points the other way soley so the TB doesn't sit in the heater box, the water pathways are *almost* the same as the B172K, apart from the fact the turbo is also water cooled (yes, oil and water cooled). Also, block off the 2 outlets that currently arn't being used from the heater end of the manifold (or, better still, find out what they should be and plumb them up, I noted the FPR isn't plumbed up so that's likely one). Green books for both the B172 and B18FT exist on the internet, the first is on this site, can't remember where the B18FT was though, likely 480 club europe.
'89(G) 340 GLE B172k
'03 S60 D5 SE, '91 (J) MX5, 1954 Cyclemaster
Ex:
'89(F) 340 GL F7R (ex B172k) - Fake -> SBKV 300 Runner Up 08, 12; '91(H) 340 GL B14.4E - Kar; '88(F) 360 GLT B200E - Jet -> BKV 300 Runner Up 09; '89(G) 360 GLT B200E - Beast
'03 S60 D5 SE, '91 (J) MX5, 1954 Cyclemaster
Ex:
'89(F) 340 GL F7R (ex B172k) - Fake -> SBKV 300 Runner Up 08, 12; '91(H) 340 GL B14.4E - Kar; '88(F) 360 GLT B200E - Jet -> BKV 300 Runner Up 09; '89(G) 360 GLT B200E - Beast
Re: What engine is this?
don't worry about stuff not being connected lol, most of it's not plumbed up
Look at some pics of the 480 turbo.. the throttle points the other way. It's ideal for me to have it this way, but I wonder how it came to be
Look at some pics of the 480 turbo.. the throttle points the other way. It's ideal for me to have it this way, but I wonder how it came to be
Trundle returns... Watch this space
-
volvodspec
- Posts: 1921
- Joined: 06 Dec 2008 09:35 pm
- Location: Netherlands.
- Contact:
Re: What engine is this?
i see a DIY weld just left of the volvo logo on that manifold throtthlebody is welded to the other side for the heater clearance as chris says
throtthlebody is welded to the other side for the heater clearance as chris saysRe: What engine is this?
Ahh, that explains it. Stupid me didn't spot that.
Think I need to find a 480 turbo to have a look around and work out the pipes and stuff
Think I need to find a 480 turbo to have a look around and work out the pipes and stuff
Trundle returns... Watch this space
Re: What engine is this?
yea looks like someone has cut both ends on and swapped them round and had them welded, not a bad i suppose? next time im at the scrappy i will have a look at the one in there and try and get you some pics
Re: What engine is this?
cool, ta.. It's mostly wiring connections I need to check.
These photos are copied from my build thread..
this black plug on a long wire
this plug, seems to be something close to the coil
lastly these 2 near the afm
[/quote]
These photos are copied from my build thread..
this black plug on a long wire
this plug, seems to be something close to the coil
lastly these 2 near the afm
[/quote]Trundle returns... Watch this space
